Carbon fiber CNC machining
Precise and custom-made carbon fiber parts are produced at Payasazeh Spanta Company according to your needs.
- Rapid prototyping
- Domestic delivery
What is carbon fiber?
Carbon fiber is a lightweight, high-strength material made of thin, strong, crystalline strands of carbon. These strands are woven together to create carbon fiber fabrics. They are then combined with a matrix, such as plastic, to form a composite material.
Composition and Structure:
Carbon fiber fibers are made from a polymer called polyacrylonitrile (PAN) or pitch. Pitch literally means bitumen or a bitumen-like substance. It is a sticky, black, highly viscous hydrocarbon compound that is usually obtained from the destructive distillation of coal or crude oil. The production process involves heating the materials at high temperatures in an inert atmosphere, which removes non-carbon atoms and leaves long chains of tightly bonded carbon atoms. This process results in threads that are very strong and stiff, yet lightweight.
What are the properties of carbon fiber?
Carbon fiber is renowned for its exceptional properties, which make it a preferred material in a variety of high-performance applications.
High power-to-weight ratio
Carbon fiber, with its combination of high strength and low weight, offers one of the highest strength-to-weight ratios of any other material.
High tensile strength
Carbon fiber has very high tensile strength, meaning it can withstand significant tensile forces without failure.
High stiffness
This material is extremely stiff, which makes it resistant to deformation under load.
Light weight
Carbon fiber is lightweight, which is one of its most notable advantages, especially in industries such as aerospace and automotive.
Low thermal expansion
Carbon fiber has a low coefficient of thermal expansion, meaning it does not expand or contract significantly with temperature changes.
High thermal conductivity
It can conduct heat well, which is useful in applications that require efficient heat dissipation.
Chemical resistance
Carbon fiber is resistant to many chemicals and solvents, which increases its durability in harsh environments.
Low electrical conductivity
While not as conductive as metals, carbon fiber does have some electrical conductivity.
Corrosion resistance
Unlike metals, carbon fiber does not corrode, which makes it suitable for use in corrosive environments.
Fatigue resistance
Carbon fiber has excellent fatigue resistance, meaning it can withstand repeated loading and unloading cycles without significant degradation.
Applications for carbon fiber parts
Due to their exceptional strength, lightweight properties, and wide versatility, carbon fiber composites are transforming industries ranging from aerospace to automotive, and from sports equipment to medical devices.
Automotive industry
Carbon fiber is revolutionizing the automotive industry by dramatically reducing the weight of vehicles while maintaining structural integrity and safety. This weight reduction improves fuel efficiency and vehicle performance. Carbon fiber composites can reduce vehicle weight by up to 50% and increase fuel efficiency by about 35%, which can save thousands of dollars in fuel costs over the life of the vehicle. The material is commonly used in high-performance sports cars, race cars, and increasingly in the production of conventional vehicles.
Sporting goods
The combination of light weight and high strength in carbon fiber makes it an ideal material for high-performance sports equipment. It is widely used in the manufacture of bicycles, tennis rackets, hockey sticks, fishing rods, golf clubs, and archery bows. These applications take advantage of carbon fiber’s ability to improve the performance and durability of the equipment while reducing its overall weight.
Medical technology
In the medical field, carbon fibers are used to produce a variety of medical devices and equipment, including prostheses, orthoses, radiological imaging devices, and surgical instruments. Its biocompatibility, radiolucency (ability to transmit X-rays), and lightweight properties make carbon fibers an ideal material for medical applications where precision and patient comfort are of paramount importance.
Construction and infrastructure
In the construction industry, carbon fibers are used to reinforce concrete, increase the strength of building materials, and provide durable solutions for structural repairs. Its high tensile strength and corrosion resistance make it suitable for use in bridges, buildings, and other infrastructure projects where long-term durability is essential.
Benefits of creating carbon fiber parts using CNC technology
Whether you’re looking to improve consistency in mass production or the ability to create complex geometries, CNC machining is the key to achieving superior results.
Accuracy
One of the most important advantages of using CNC technology to create carbon fiber parts is its high precision and accuracy. CNC machines are capable of creating complex shapes and designs with tolerances as small as a few microns.
Compatibility
CNC technology ensures that each part produced is identical to the original design and maintains consistency in large production runs. The ability to reproduce parts with high precision reduces the likelihood of defects or flaws and ensures that all parts meet stringent quality standards.
Efficiency and speed
CNC machining is highly efficient and can operate 24/7 with minimal human intervention. The high-speed cutting capabilities of CNC machines enable rapid processing of carbon fiber, reducing overall production time and increasing throughput.
Complex geometries
CNC machines can process complex geometries and precise features that are very challenging, if not impossible, to achieve with manual machining. This capability is especially useful for carbon fiber, which is often used in applications that require complex designs and lightweight structures, such as aerospace and high-performance sports equipment.
Waste reduction
The precision of CNC machining minimizes material waste. CNC machines are programmed to optimize cutting paths and material usage, reducing waste, and preserving expensive carbon fiber materials. This efficiency is not only cost-effective; it is also environmentally friendly, as it results in less waste and more sustainable production methods.
Low surface quality
CNC machining offers superior surface finish quality compared to traditional methods. Precise control over cutting parameters ensures smooth edges and surfaces, which is essential for applications where the aesthetics and aerodynamics of carbon fiber parts are important, such as automotive and consumer electronics.
CNC processes for carbon fiber machining

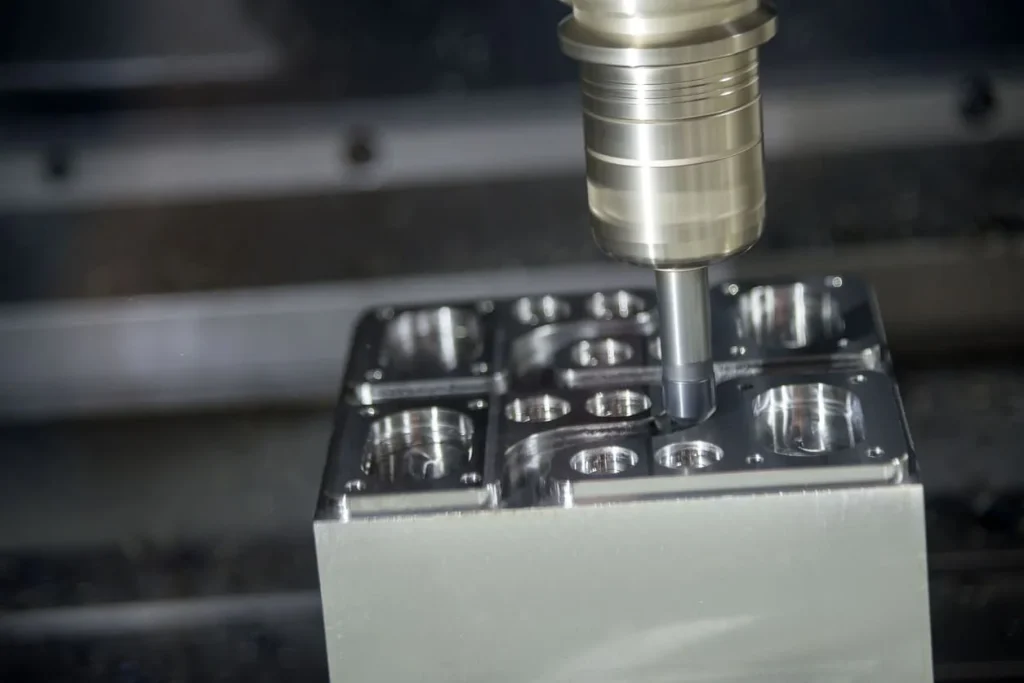

1. CNC Milling

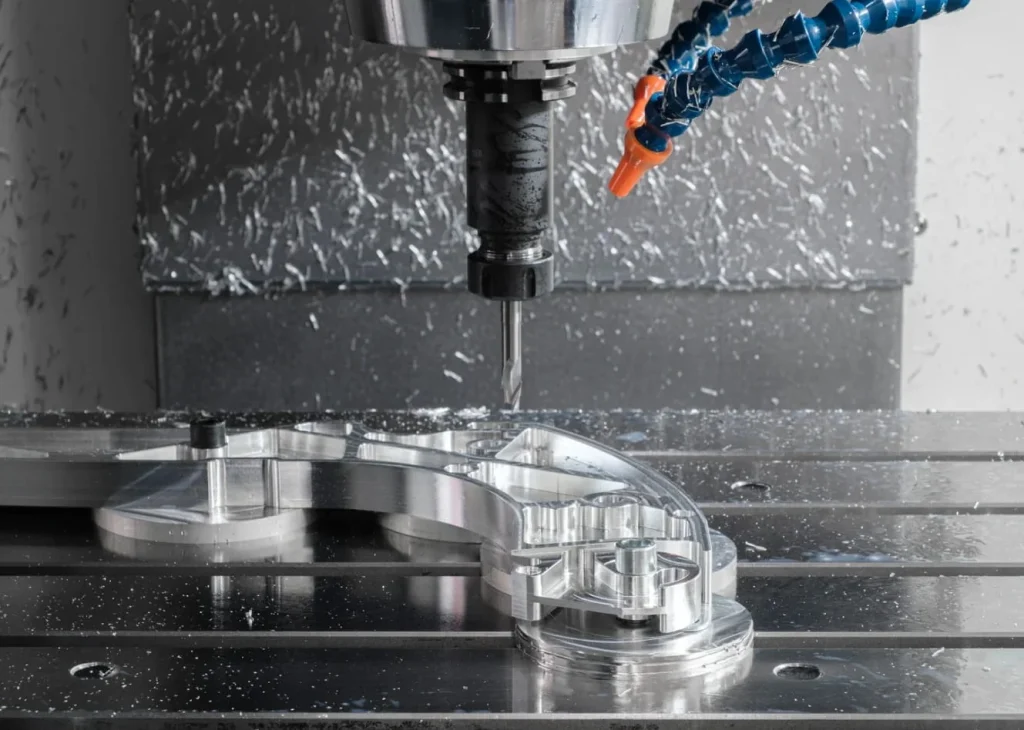

CNC milling uses rotating cutters to remove material from a carbon fiber workpiece, allowing for the creation of complex shapes and precise parts. The process is very precise, but requires specialized tools, such as diamond or carbide-coated cutters, to prevent delamination and excessive tool wear. Carbon fiber milling also involves optimizing speed and feed to minimize heat and ensure clean cuts, making it suitable for complex, high-precision applications.
2. CNC Turning
CNC machining involves rotating a carbon fiber workpiece while a cutting tool shapes it, typically used to create cylindrical parts. This process is challenging in the production of carbon fiber materials due to their tendency to chip and requires precise control to avoid damaging the material. Diamond or carbide-coated tools are preferred in this process, and maintaining optimal speed and feed is essential to achieve smooth, precise results without compromising material strength.
3. Precision CNC Routing Engraving and Cutting
This process, similar to milling, uses a high-speed rotary cutter to shape carbon fiber; it is typically used to cut flat sheets into specific designs. This process is efficient for producing large quantities of parts with consistent accuracy. However, to manage the hazardous dust particles generated by the production of carbon fiber parts, effective dust collection systems are required, and careful selection of cutting tools is essential to prevent wear and ensure smooth edges.
4. CNC Drilling work hole
In this process, precise holes are created in carbon fiber materials, often for mounting points and fasteners. The process requires sharp, high-quality drill bits, such as carbide or diamond-coated, to prevent wear or cracking around the edges of the hole. Drilling carbon fiber requires precise control of the feed rate and speed of the drill to maintain the integrity of the material and create clean, precise holes.
5. CNC Waterjet Cutting

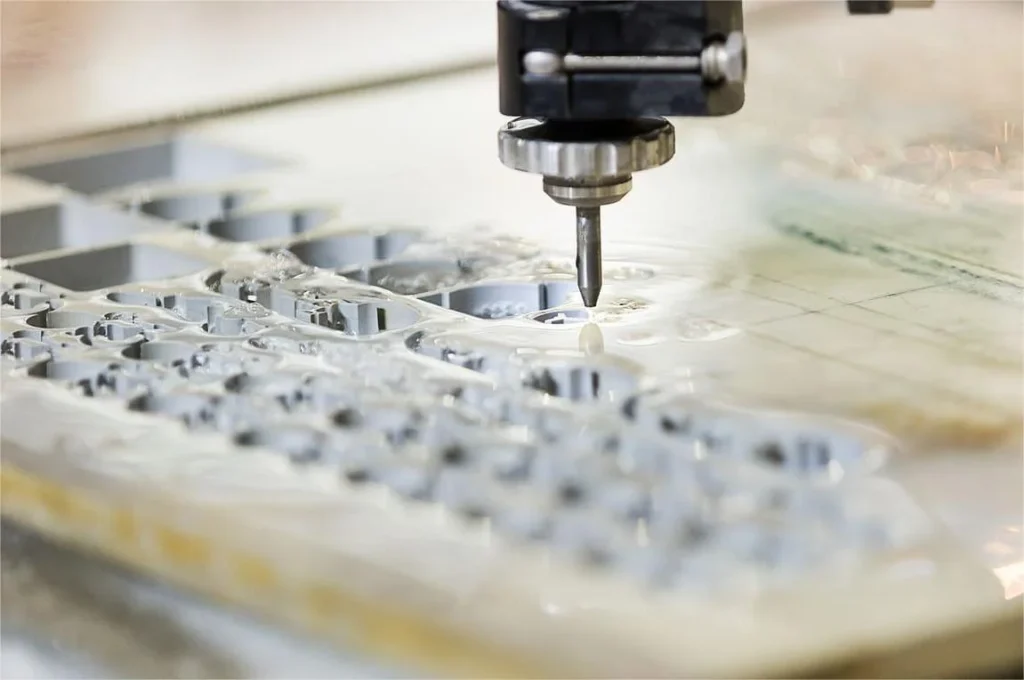

In this process, a high-pressure stream of water mixed with abrasives is used to cut carbon fiber, allowing for the creation of intricate and precise shapes. This process is beneficial because it minimizes thermal damage and the risks of delamination, ensuring clean cuts without compromising the structural integrity of the material. Proper handling is essential to prevent water absorption by the carbon fiber, which can affect its properties.
6. CNC Laser Cutting
In this process, a focused laser beam is used to cut or engrave carbon fiber, allowing for high precision and the creation of complex designs. Although this method is efficient, it does introduce the risk of thermal damage, which can affect the structural integrity of the material. To mitigate these risks, precise adjustment and control of laser parameters is crucial, making laser cutting ideal for precise and delicate work.
7. CNC Grinding

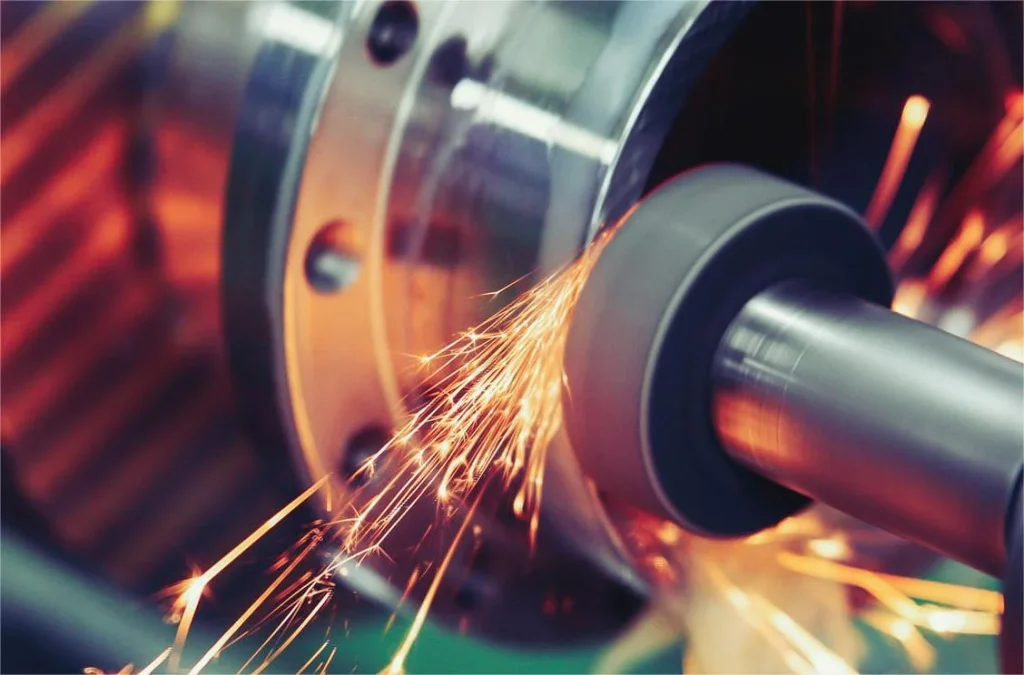

The grinding process uses a rotating abrasive wheel to remove material from the surface of carbon fiber parts, often for final finishing and to achieve a smooth, uniform surface. The process produces fine dust, which must be managed with effective dust collection systems to prevent health hazards and damage to machinery. Grinding requires careful selection of abrasives and control of grinding parameters to prevent overheating and maintain the integrity of the carbon fiber.
Challenges and solutions in carbon fiber parts manufacturing processes using CNC technology
Carbon fibers, due to their composite structure, have a very high abrasion resistance, which can cause rapid wear and tear of cutting tools. These fibers can quickly wear down the cutting edges of tools, which in turn leads to frequent tool replacement and increased production costs.
In our workshops, we use specialized diamond-coated tools and polycrystalline diamond tools that are designed to resist the abrasive properties of carbon fibers.
Carbon fiber machining produces fine, hazardous dust particles that pose health risks to workers and, if mismanaged, can damage machinery.
We have implemented an advanced dust control system that includes high-efficiency particulate air (HEPA) filters and enclosed machining environments. HEPA filters are capable of capturing 99.97% of particles as small as 0.3 microns, ensuring that suspended carbon fiber dust is effectively contained and removed.
When machining carbon fiber, there is a risk of delamination and fiber pull-out, which can compromise the structural integrity and surface finish of the parts.
To address delamination and fiber pullout issues, we use high-precision machining techniques and optimized cutting parameters. Our CNC machines are programmed with specific feed rates, cutting speeds, and tool paths to minimize material stress and prevent damage. Additionally, we utilize multi-axis machining capabilities to achieve complex geometries without compromising the integrity of the carbon fiber layers.
Heat generated during the machining process can affect the resin matrix in carbon fiber composites, leading to thermal degradation and poor surface quality.
To manage the heat generated during machining, we use advanced cooling and lubrication systems. These systems are designed to effectively dissipate heat and maintain optimal cutting conditions, thereby preserving the quality of the carbon fiber material. Our cooling systems are also equipped with filtration units to remove any contamination and ensure the durability of the tools and machined parts.
Our carbon fiber CNC machining services
Why choose our carbon fiber CNC machining services?
Choosing the right manufacturer for CNC machining is not easy, but you can choose us; just like you choose your life partner; it’s not easy, but it’s worth it!
Accuracy and precision
Equipped with the most advanced CNC machines, we are able to process a variety of carbon fiber materials and achieve close tolerances down to ±0.001 inch.
Strength and durability
We utilize advanced techniques and meticulous quality control processes to maintain the inherent strength and durability of carbon fiber and provide you with durable, long-lasting parts.
Short delivery time
Our efficient processes and dedicated team enable us to deliver fast turnaround times without compromising on quality. We prioritize your time commitments and keep your projects on schedule.
Cost-effective solutions
Our pricing structure is competitive and transparent. We provide detailed, detailed pro-forma invoices that clearly outline all costs, allowing you to make an informed decision without any hidden costs.
Customization and flexibility
Our flexible approach allows us to adapt to your unique needs and ensure that you receive parts that exactly match your requirements.
Comprehensive support
From initial consultation to final delivery, our team offers comprehensive support and transparent communication.
See our state-of-the-art carbon fiber CNC machining workshop.

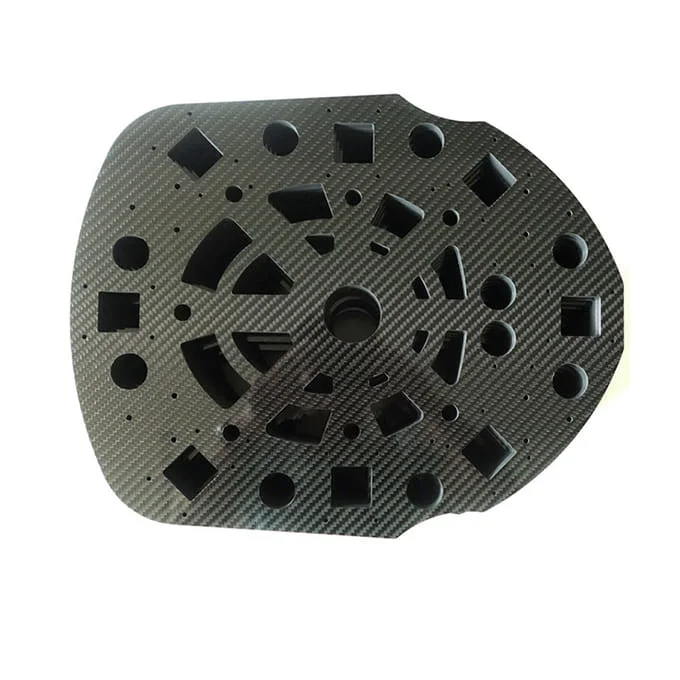

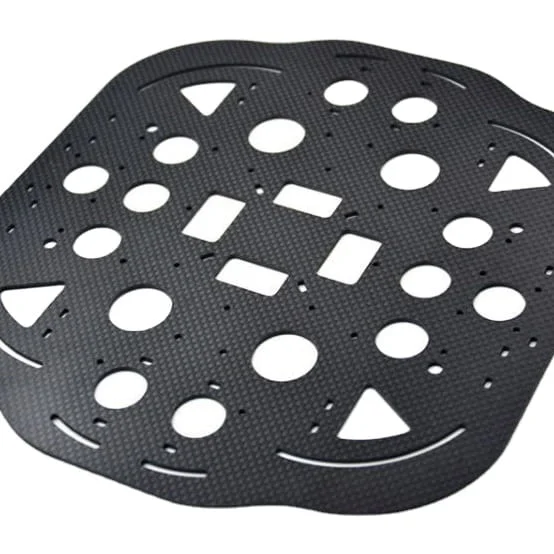

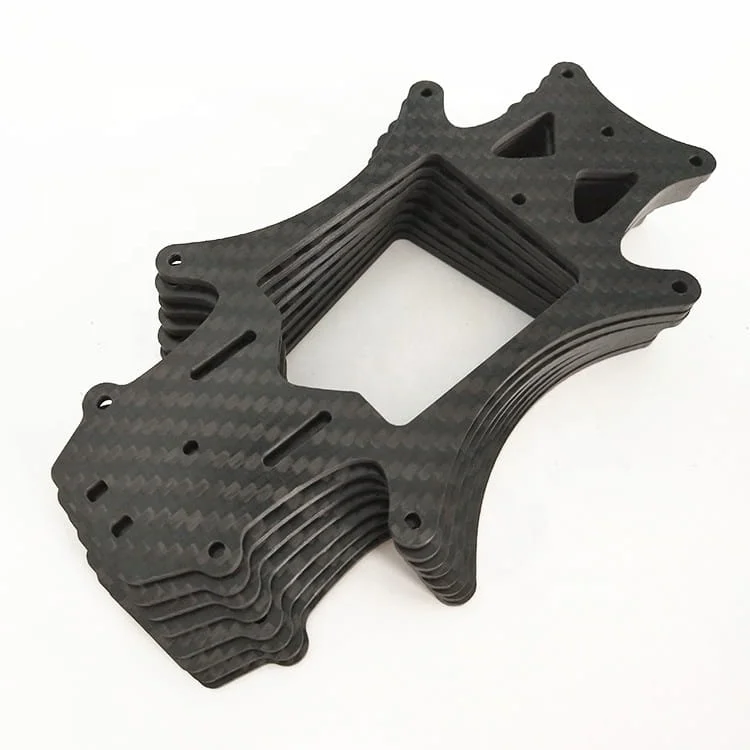

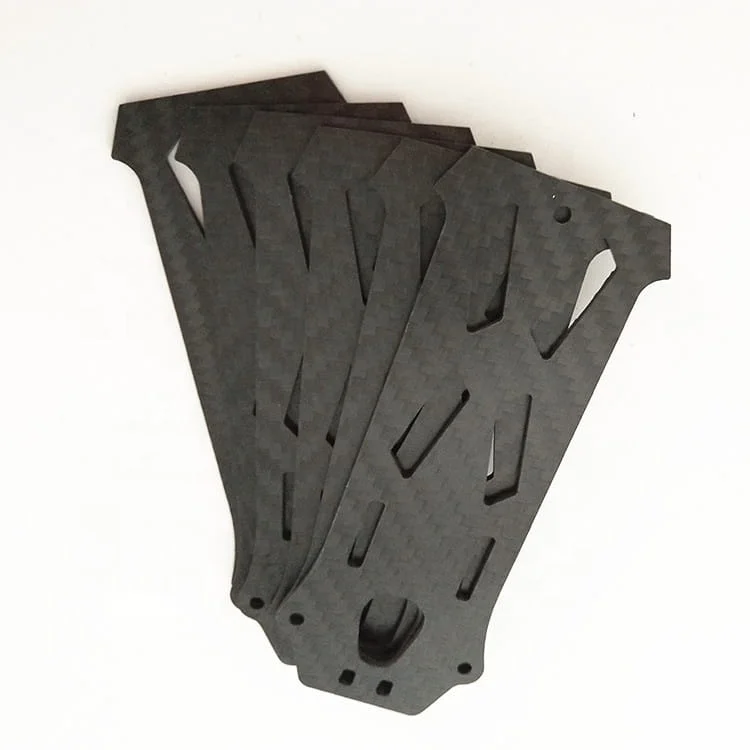

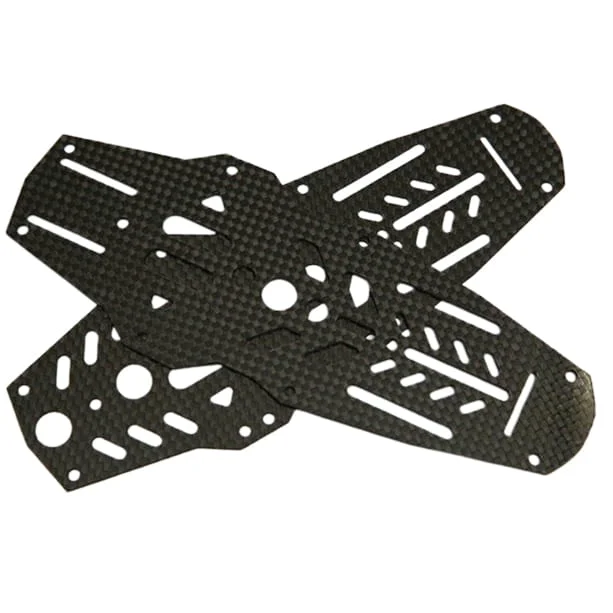

Carbon Fiber Parts Gallery
How to start your carbon fiber CNC machining project?
We prioritize clear communication, meticulous attention to detail, and high-quality manufacturing standards to deliver carbon fiber parts that meet your exact specifications and exceed your expectations.
1. Initial consultation
We start with an initial consultation to fully understand your project needs and goals.
2. Design and engineering review
Our engineering team will review your design files and provide feedback and recommendations to optimize manufacturability.
3. Project estimate and planning
We provide a detailed proforma invoice and project schedule that clearly outlines costs, delivery times, and key milestones.
4. Prototype development
For new designs, we develop a prototype to test and validate the design and make any necessary modifications before moving into full production.
5. Production and quality control
In the mass production stage, our advanced CNC machining ensures precise and consistent manufacturing.
6. Final inspection and delivery
Each part undergoes a final inspection to ensure compliance with all specifications and quality standards. Approved parts are carefully packaged and shipped to your desired location.
Our commitment to you doesn’t end with delivery. We offer ongoing support to address any questions or concerns you may have after delivery.
